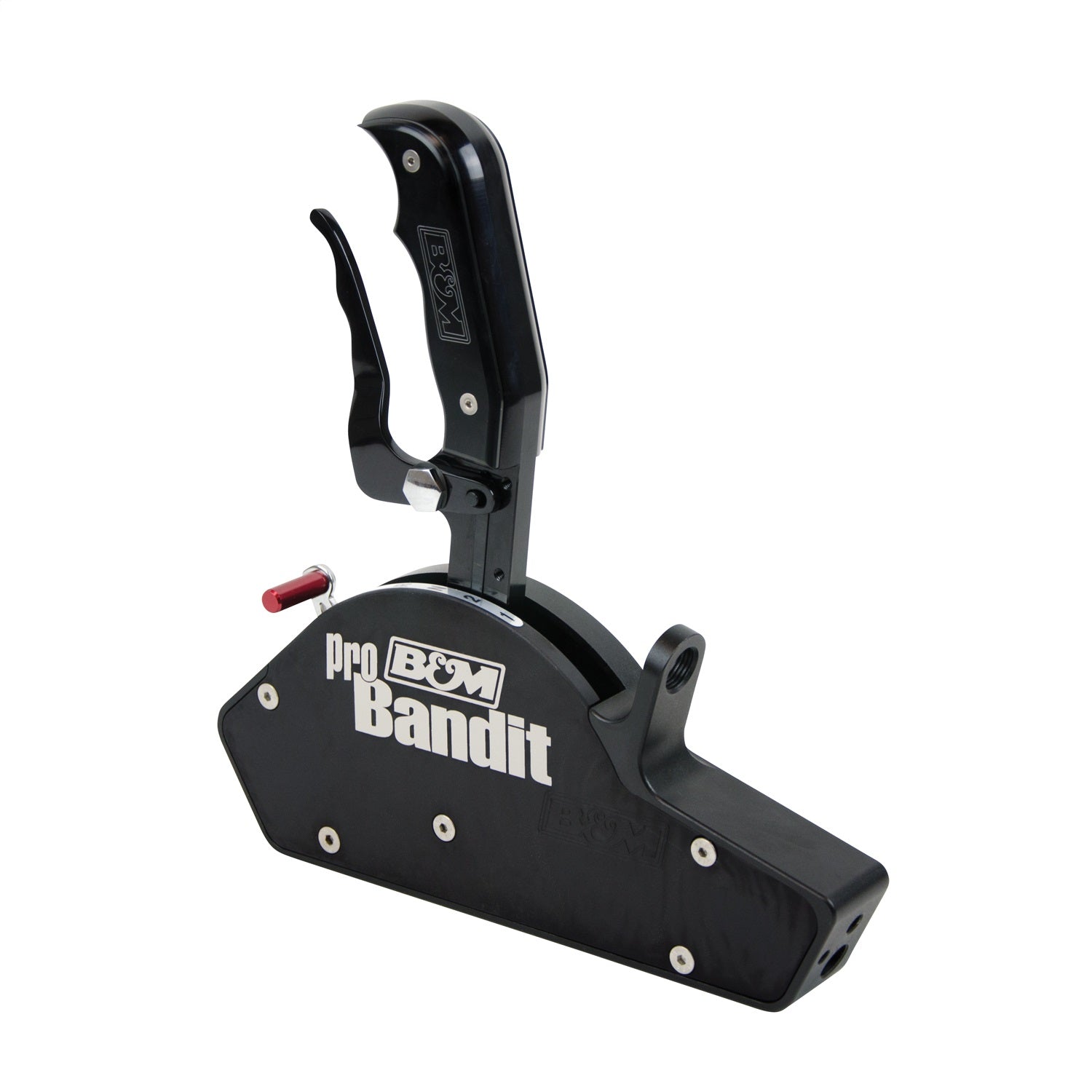

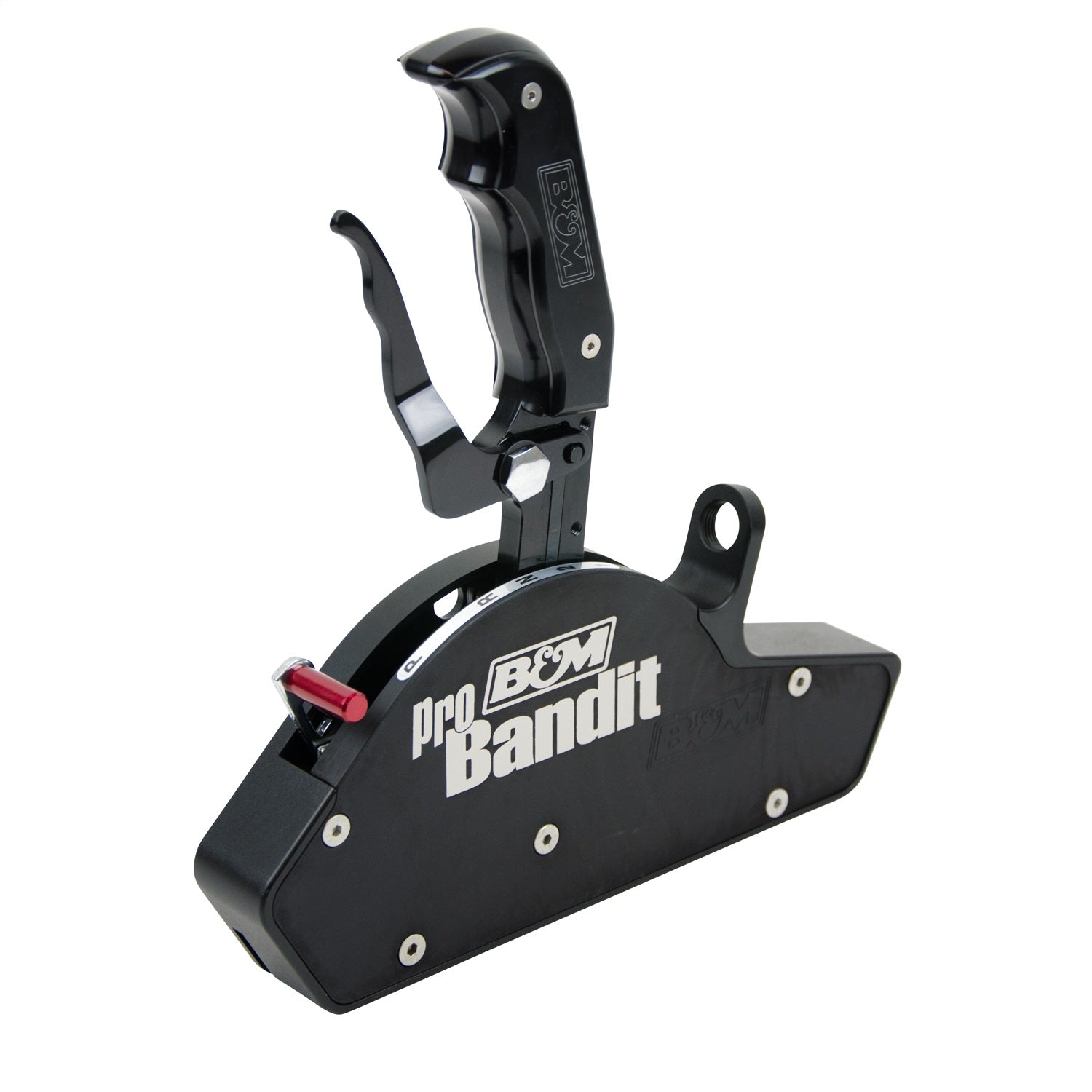

B&M Automatic Gated Shifter - Magnum Grip Stealth Pro BanditB&M81113

B&M Automatic Gated Shifter - Magnum Grip Stealth Pro BanditB&M81113

With its cutting-edge Magnum Grip design combined with race-proven mechanics, the Magnum Grip Stealth Pro Bandit offers an unbeatable combination of race performance, functionality, and looks! This race shifter comes set up for 2-speed Powerglide transmissions and is packed with all kinds of features. Starting out as a seven-pound block of 6061-T6 aluminum, the Pro Bandit shifter features CNC machined construction, ergonomically shaped Magnum Grip shift handle with replaceable side grip plates, black anodized finish, reverse lockout meeting NHRA/IHRA safety rules, compatible with forward or reverse pattern valve bodies and capable of controlling 2, 3 and 4-speed automatic transmissions by simply replacing the hardened steel gate plate and applicable bracket and lever. Other features include an 8-foot Super Duty shifter cable, Powerglide Pro Lever, cable quick disconnect extension and offers a built-in mounting location for adding an optional CO2 shift cylinder #80883 or mounting an electric shift solenoid for P/G applications. Comes with detailed instructions for an easy installation. Optional gate plates, cable brackets, lever kits, and side grip plates with and without 12V momentary buttons are available separately. Overall Dimensions - 10L x 1.3W x 9.3H

Specifications:

Application	Universal
Automotive Item Grade	High Performance
Brand	B&M
Cable Exit	Rear
Cable Length (in)	96
California Proposition 65 Required	Yes
Category	Transmission
17	Black
Emission Code	5
Instructions Included	Yes
Lighted Indicator	No
10	Billet Alluminum 6061-T6
NHRA/IHRA Approved	Yes
Park/Reverse Lock-out Style	Trigger
Product Type	Shifter
Shift Lever Length (in)	10.5
Shifter Action Type	Verticle Gate
Shifter Material	Billet Alluminum 6061-T6
Stick Height (above console)(in)	10.5
Sub Category	Automatic Transmission Components
Transmission Type	Automatic
Description_INV	STEALTH PRO BANDIT MAGNUM WITH ASSY
Description_ASC	You must first install the shifter cable and an air slave cylinder or electric solenoid onto the shifter before positioning it in your vehicle. This is to ensure that you allow for proper clearance at the rear of the shifter for these components before you permanently mount the shifter body into the vehicle. Mounting the shifter first without the cable and the air slave cylinder attached can cause possible interference from frame rails or other components. Poor cable routing and cable binding will result in poor shifter operation.
Description_DES	B&M Automatic Gated Shifter - Magnum Grip Stealth Pro Bandit
Description_EXT	Universal 2, 3, & 4-Speed Compatible Shifter
Description_MKT	With its cutting-edge Magnum Grip design combined with race-proven mechanics, the Magnum Grip Stealth Pro Bandit offers an unbeatable combination of race performance, functionality, and looks! This race shifter comes set up for 2-speed Powerglide transmissions and is packed with all kinds of features. Starting out as a seven-pound block of 6061-T6 aluminum, the Pro Bandit shifter features CNC machined construction, ergonomically shaped Magnum Grip shift handle with replaceable side grip plates, black anodized finish, reverse lockout meeting NHRA/IHRA safety rules, compatible with forward or reverse pattern valve bodies and capable of controlling 2, 3 and 4-speed automatic transmissions by simply replacing the hardened steel gate plate and applicable bracket and lever. Other features include an 8-foot Super Duty shifter cable, Powerglide Pro Lever, cable quick disconnect extension and offers a built-in mounting location for adding an optional CO2 shift cylinder #80883 or mounting an electric shift solenoid for P/G applications. Comes with detailed instructions for an easy installation. Optional gate plates, cable brackets, lever kits, and side grip plates with and without 12V momentary buttons are available separately. Overall Dimensions - 10L x 1.3W x 9.3H
Description_FAB	Optional Forward and Reverse Pattern Gate Plates Available

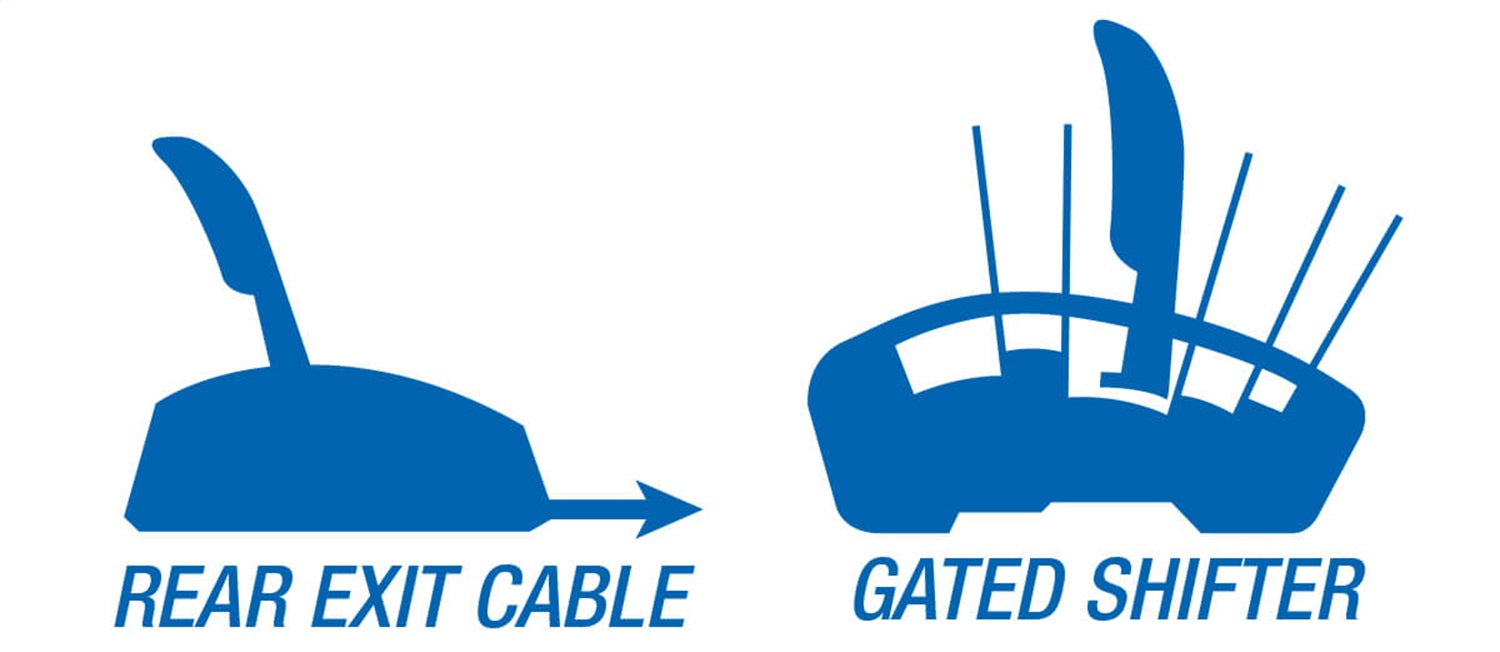

Description_FAB	Rear Cable Exit Favors Rear Engined Dragsters
Description_FAB	Forward and Reverse Shift Pattern Compatible
Description_FAB	CNC Machined Aluminum Construction
Description_FAB	Ergonomic Magnum Grip Shift Handle
Description_FAB	Set-up for Powerglide Transmissions
Description_FAB	Compact & Lightweight Design
Description_FAB	Over 65 Years of B&M Quality
Description_FAB	Replaceable Side Grip Plates
