4 Link System; 8 in. Lift; Incl. Coil Spring/Stealth Shocks;FabtechK2266M

4 Link System; 8 in. Lift; Incl. Coil Spring/Stealth Shocks;FabtechK2266M

Fabtech's 8 in. 4 Link Conversion System for the Ford Super Duty is designed to provide maximum suspension performance for both on and offroad use. The system replaces the factory Radius Arm suspension with heavy duty 4 Link components for increased strength and functionality. The system will provide less caster change throughout the travel range which benefits on road driving. When offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Unique to this 8 in. system is Fabtech's extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this exclusive system that offers proper steering performance. Fabtech's extended length Track Bar is 4 in. longer than stock and is offset to the driver side with a stout 1/4 in. thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4 3/4 in. BS wheels. Fabtech's 4 Link System has been proven in over 10 years of service in rugged commercial and military applications to ensure long life on your daily driven vehicle. High quality components with properly designed suspension geometry makes this Super Duty system the pinnacle of all suspensions. Comes with a free 5 year 60,000 mile powertrain warranty. For a complete understanding of this high quality system please see below features and benefits by component.

Specifications:

Lift/Drop Height	8 in.
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

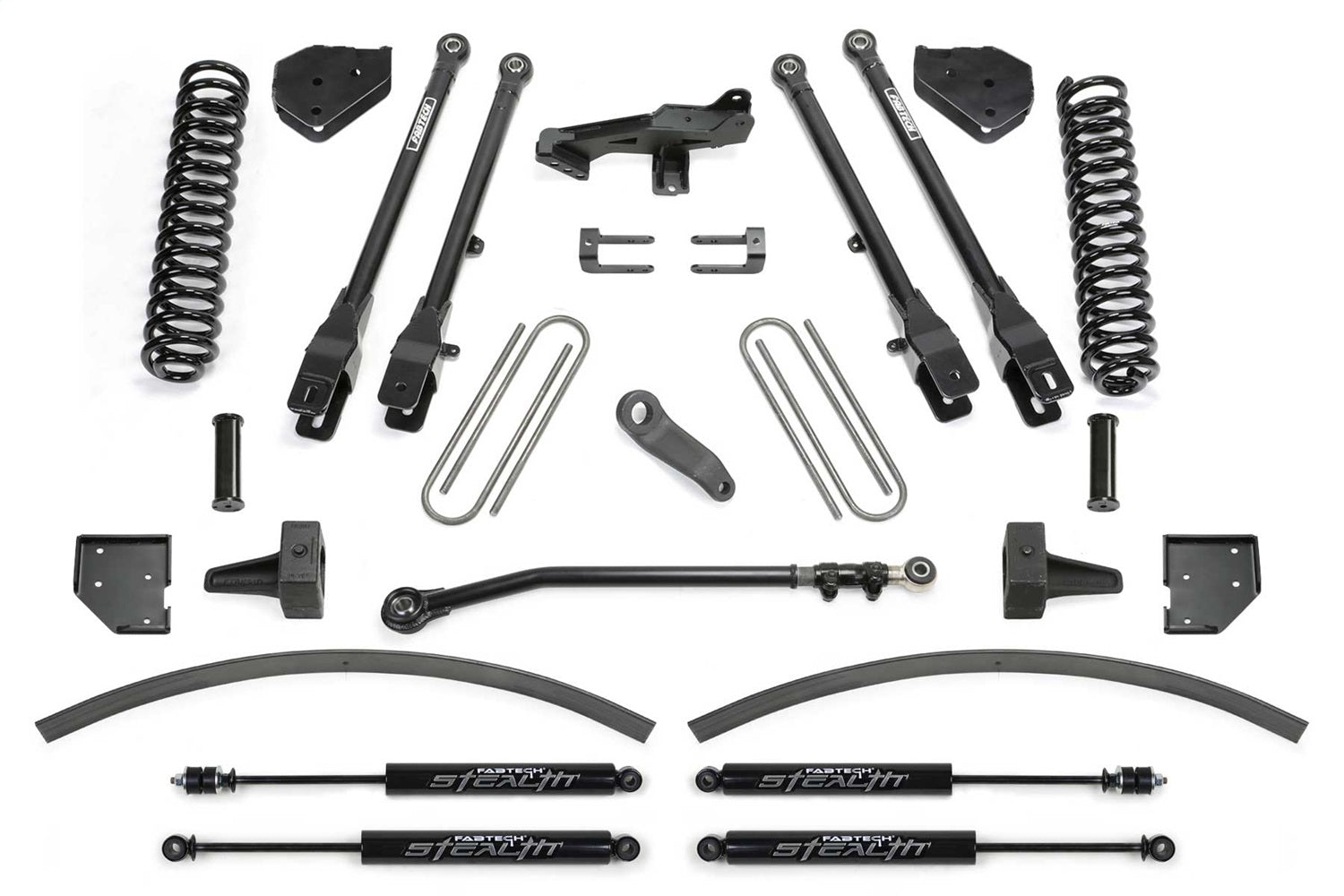

Description_DES	4 Link System
Description_EXT	4 Link System; 8 in. Lift; Incl. Coil Spring/Stealth Shocks;
Description_FAB	2 In. OD Heavy Wall Links
Description_FAB	Fabtech Heavy Duty 5 Ton Joints
Description_FAB	Track Bar Relocation Bracket
Description_FAB	Extended Length Track Bar
Description_FAB	Sway Bar Drop Brackets
Description_FAB	Pitman Arm
Description_FAB	Rear Block And U-Bolt Kit
Description_FAB	Rear Add A Leaf Kit
Description_MKT	Fabtech's 8 in. 4 Link Conversion System for the Ford Super Duty is designed to provide maximum suspension performance for both on and offroad use. The system replaces the factory Radius Arm suspension with heavy duty 4 Link components for increased strength and functionality. The system will provide less caster change throughout the travel range which benefits on road driving. When offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Unique to this 8 in. system is Fabtech's extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this exclusive system that offers proper steering performance. Fabtech's extended length Track Bar is 4 in. longer than stock and is offset to the driver side with a stout 1/4 in. thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4 3/4 in. BS wheels. Fabtech's 4 Link System has been proven in over 10 years of service in rugged commercial and military applications to ensure long life on your daily driven vehicle. High quality components with properly designed suspension geometry makes this Super Duty system the pinnacle of all suspensions. Comes with a free 5 year 60,000 mile powertrain warranty. For a complete understanding of this high quality system please see below features and benefits by component.
Description_SHO	LftKt-Suspw/Shock
